Roll to Roll system

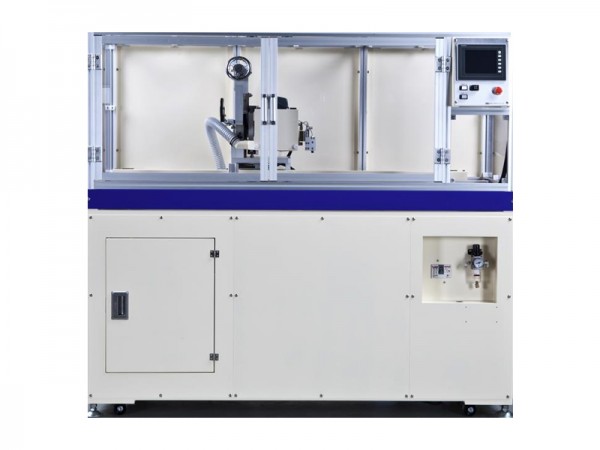

Automatic Squeegee grinder - other
| Description | General Specifications | ||
|---|---|---|---|
| Squeegee thickness | 6 ~ 20 mm | ||
| Squeegee grinding length | 200 ~ 1000 mm | ||
| Polishing wheel | #235 / Finishing #325 | ||
| Polishing wheel rotation speed | 1700 rpm | ||
| Stroke adjustment | Data input method | ||
| Grinding height adjustment | Automatic origin search | ||
| Polishing pitch | 0.1 ~ 0.9 mm arbitrary setting | ||
| Polishing Count | Randomly set from 1 to 99 times | ||
| Dimension | L 1600 x W 760 x H 1650mm | ||
| Electricity | 220V 3Ph 500W |
Product Description
Both flat angle and angle polishing processes can be completed in one process.
